JAW PLATE

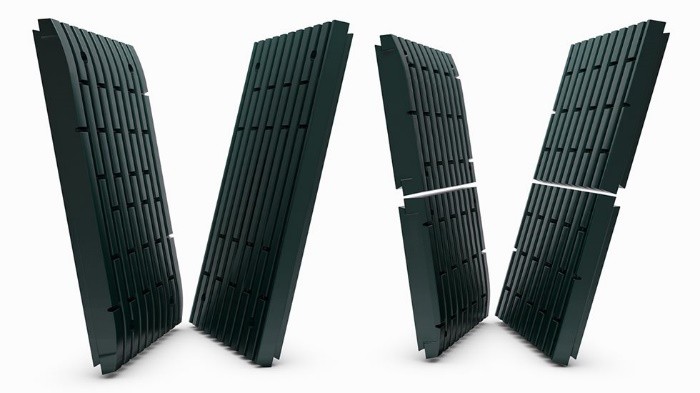

What are jaw plates?

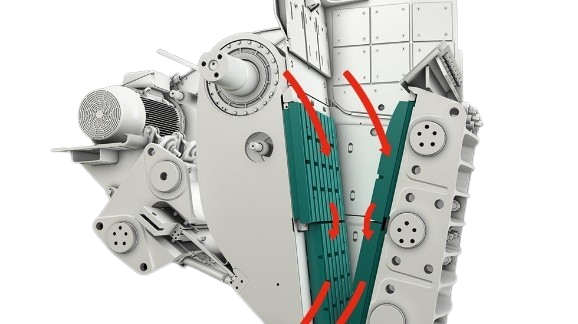

A set of jaw plates is composed of the movable (swing jaw) and fixed (stationary) jaw plates. The crushed material in a jaw crusher is compressed when the movable jaw presses the feed material against the fixed jaw. The rock remains in the crushing chamber until it is small enough to pass through the gap towards the bottom of the jaws.

Jaw plates or jaw dies are the most frequently replaced wear parts of a jaw crusher, so the quality of the jaw plates is one of the most important factors that determines the crushing efficiency and machine operating time.

Genuine Alternative Wear Parts

Jaw plates made by MINREQ

MINREQ holds a vast mold inventory of extensive well-known jaw crusher brands, including M-Series, S-Series and others. Our jaw plates are cast and produced in accordance with the OEM standard and preciously machined for mounting. We also guarantee the proper fit of all jaw plates we produce.

MODEL : M - Series - MC106, MC116, MC120, MC130, MC150, MC105, MC100, MC105, MC140, MC125, MC80

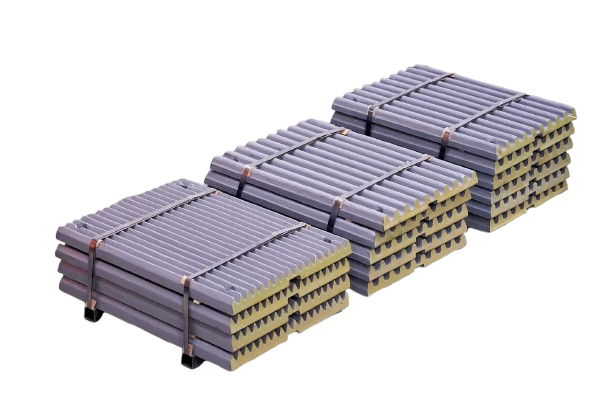

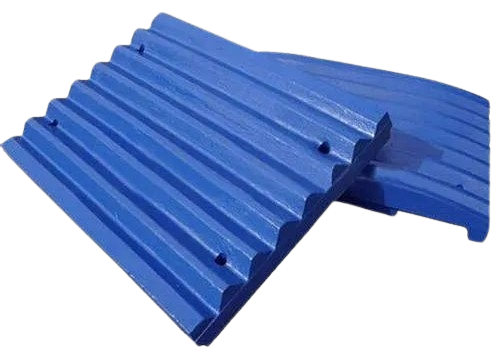

Jaw Plate

*NOTE: All manufacturer names, part numbers, model numbers, and descriptions are used for reference and identification purposes only, they are owned by the respective machine manufacturer. All parts supplied are manufactured and warranted by MINREQ and are not manufactured by or purchased from the Original Equipment Manufacturer. MINREQ has no association with the OEM and does not intend to give this impression.

Traceable Quality

MINREQ maintains full traceability for all castings produced. Each cast comes with below reports, and we keep them for three years for possible quality tracing. These reports are not delivered with castings unless required.

Dimension Inspection Report

Heat Treatment Record and Traceable Foundry Heat Number

Chemical Composition Report

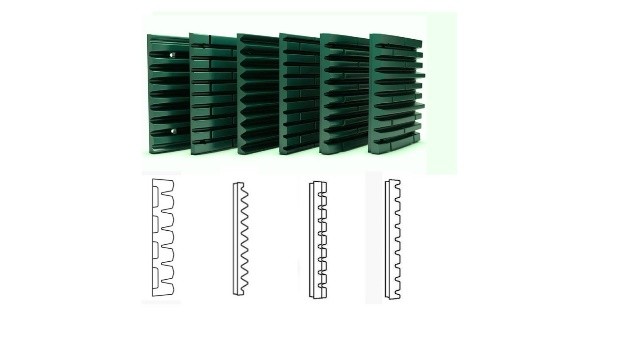

Jaw Profile Optimization

Not satisfied with the service life of your current jaws? Experiencing unwanted blockage of hard rocks?

We are able to help you through jaw profile optimization, either by OEM recommended tooth configuration or a customized solution for some old models. Contact our expert and get a tailor-made jaw profile optimization plan.

Metallurgical Options

In general, jaw plates are made of high manganese steel, which is considered the dominant wear material. High manganese steel is also known as Hadfield manganese steel, a steel whose manganese content is very high and which possesses austenitic properties. Such plates are not only extremely tough but are also quite ductile and work-harden with use.

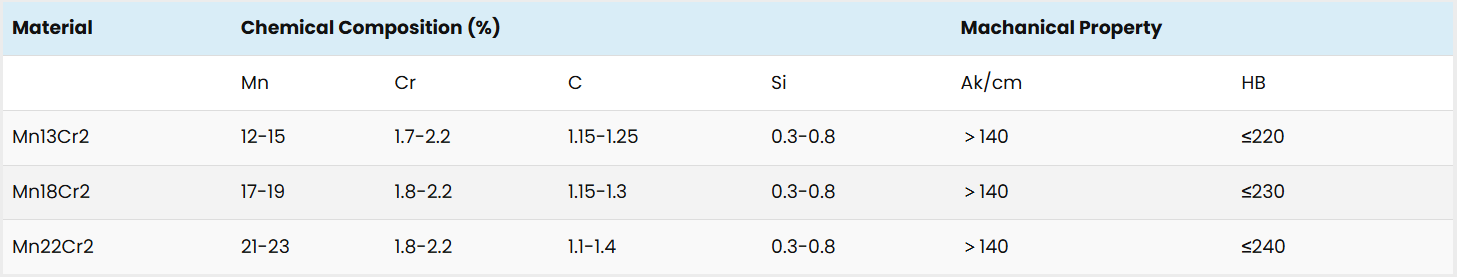

We offer jaw plates in 13%, 18%, and 22% grades of manganese, with chromium ranging from 2% to 3%. Alloying elements can be added upon requirements, such as Mo (molybdenum) or wear-resistant inserts.
