GLOBE VALVE

Standard designed for easy maintenance and low total ownership cost, our industrial slurry valve range is the proven choice for highly abrasive slurry applications.

Today, MINREQ offers one of the world's newest develop industrial valves in High abrasive ( Hi Chrome ) metal on the market. Replacements of currently used knife gate valve and others costly Valve due to non-availability high abrasive ( Hi Chrome Metal ) valve in market.

MINREQ slurry valves are designed with high abrasive metal for both ease of maintenance and low overall ownership costs in mind. They are engineered to handle the harshest and most abrasive process flow conditions.

The MINREQ Gate Valve is made for the toughest and most abrasive shut off applications involving slurries, powders or granular substances.

WHY CHOOSE MINREQ VALVE ?

MINREQ Industrial slurry valve able to replace the currently used below specified available valve in Market due to High Abrasive body Material like Hi Chrome ( Min 600 BHN ).

Pinch Valves: These valves control flow by pinching a flexible sleeve, minimizing abrasive wear.
Knife Gate Valves: These valves feature a sharp gate that provides a full bore, ideal for abrasive materials.
Diverter Valves: These valves are designed to eliminate dead spaces and prevent material buildup.
Other Slurry Valves: Various other types of slurry valves, such as globe valves and ball valves, may also be used in specific applications.

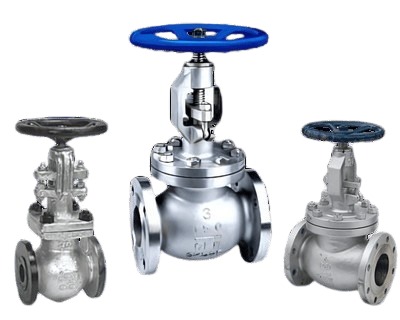

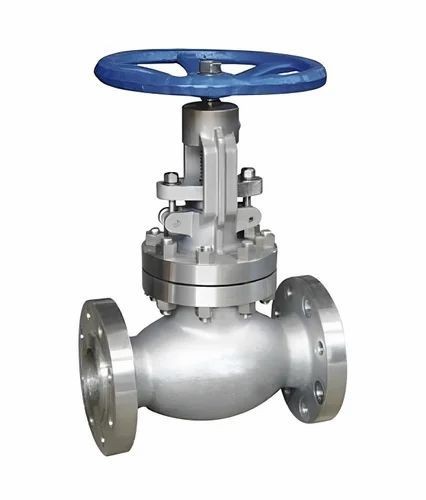

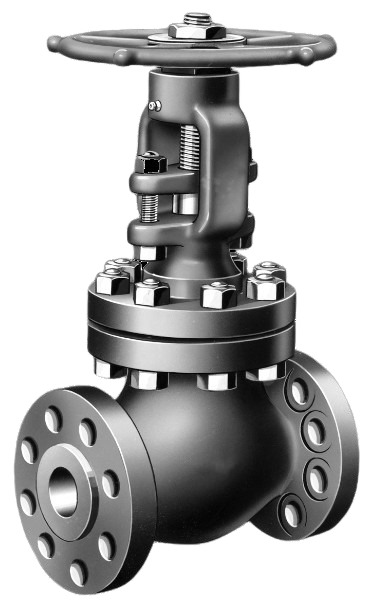

Globe Valve

*NOTE: All manufacturer names, part numbers, model numbers, and descriptions are used for reference and identification purposes only, they are owned by the respective machine manufacturer. All parts supplied are manufactured and warranted by MINREQ and are not manufactured by or purchased from the Original Equipment Manufacturer. MINREQ has no association with the OEM and does not intend to give this impression.

Typical Applications

Superior flow characteristics, Zero leakage shut off, High strength top works, Typical applications, Alumina, Cement, Coal, Kaolin, Mineral sands, Hard rock mining, Phosphates, Pulp and paper, Sand and gravel, Soda ash, Wet flue gas desulphurization,

Manufacturing Std: BS: 1873/5352Testing & Inspection Std: API: 598Face to Face: ANSI B16.10 / As per DIN ND-16 / ND-40End Connection: Flanged ends As per ANSI B16.5& 26" and above ANSI B16.47 Series A&B DIN 2533 / 2543 / 2535 / 2545Socket Weld And Threaded To: ANSI B16.11 / ANSI B 1.20.1Butt Weld Ends: As per ANSI B 16.25Shell Wall Thickness: ANSI B16.34 / ANSI B16.25

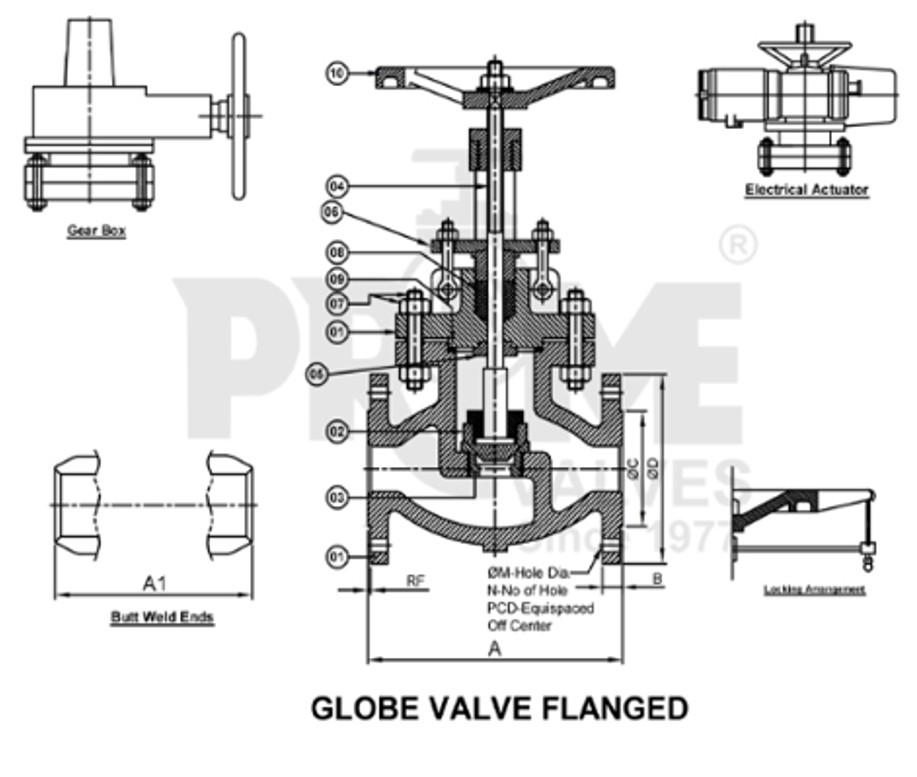

Sr	Part Name	Material
1	Body & Bonnet	ASTM A 532 Gr 3A
2	Disc	ASTM A 532 Gr 3A
3	Seat Ring	A 105
4	Stem
5	BackSeat Bushing
6	Gland Flange	A 216 WCB
7	Stud & Nuts	ASTM A193 Gr.B7/ASTM A 194 Gr.2H
8	Gland Packing & Nuts	Graphite Ring, Metallic Wire Reinforced
9	Gasket	S.S.304/S.S.316 Spiral Wound Gasket with Grafoil Filler
10	Hand Wheel	Ductile or Malleable Iron
